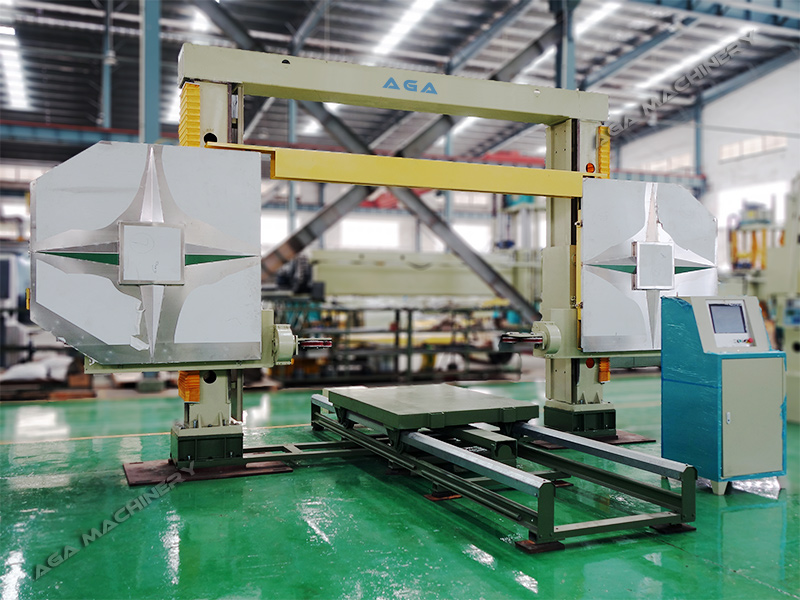

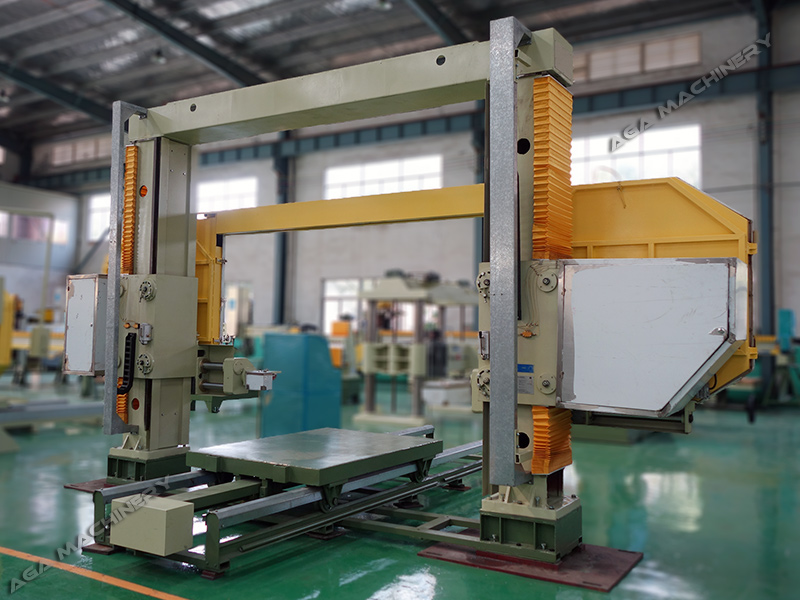

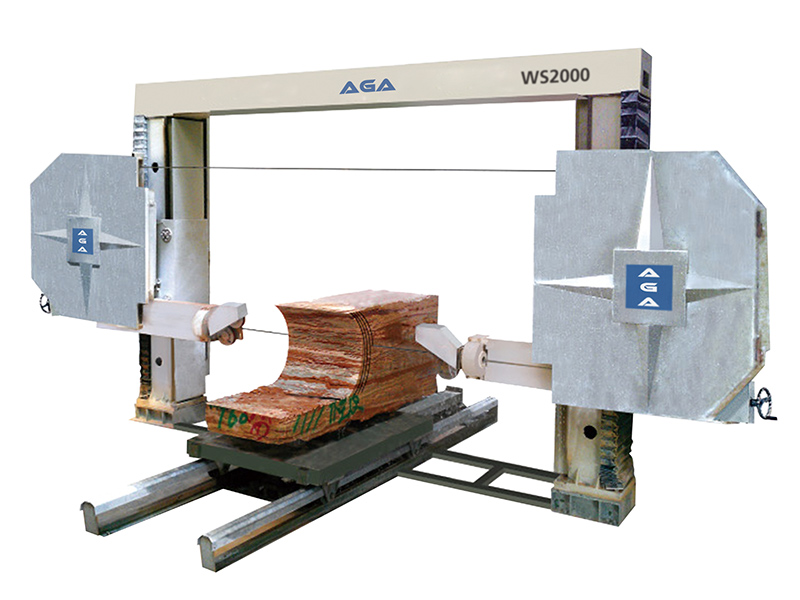

CNC Wire Saw Machine

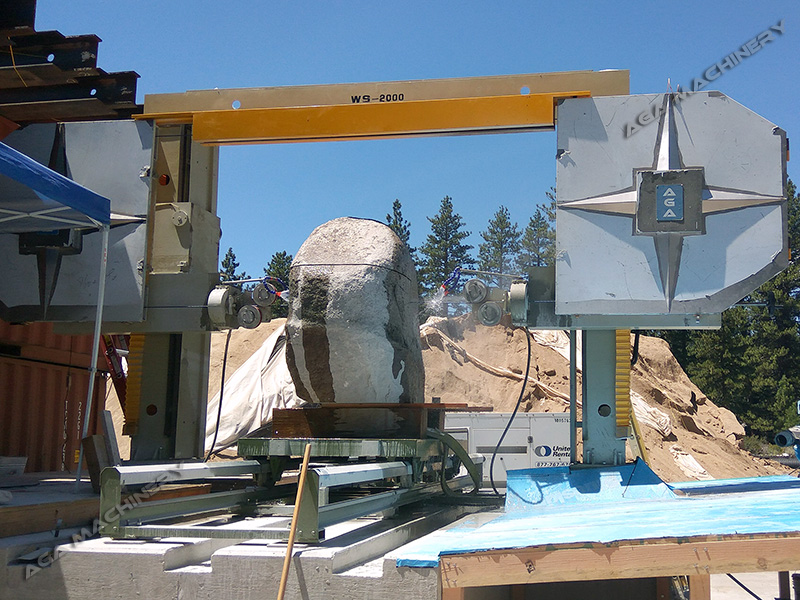

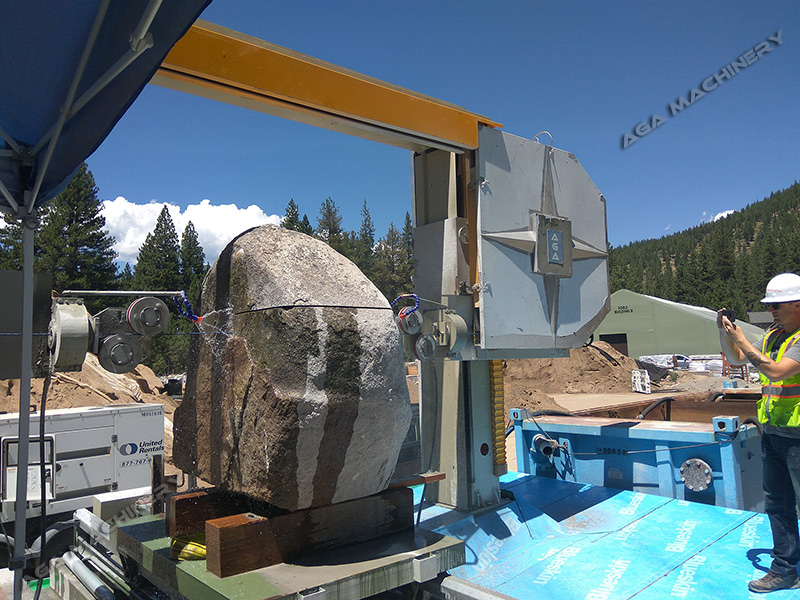

Wire saw machine for granite marble stones.

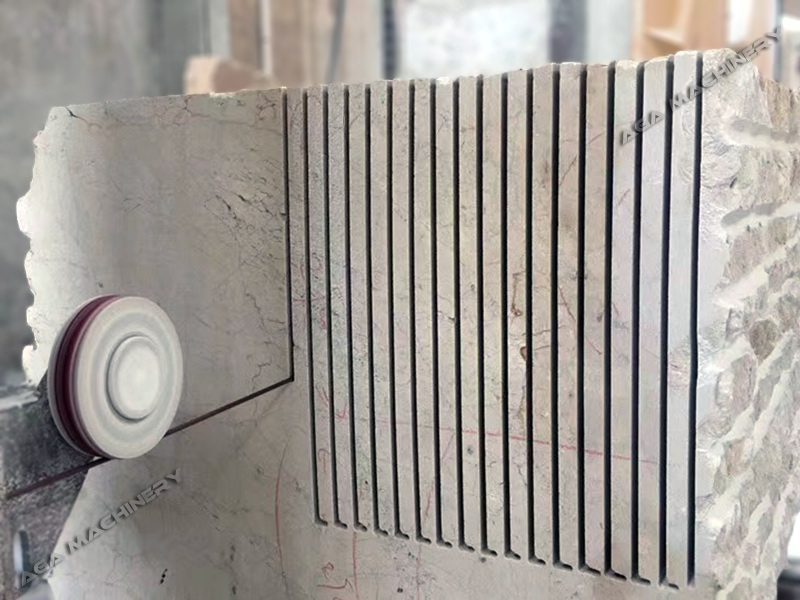

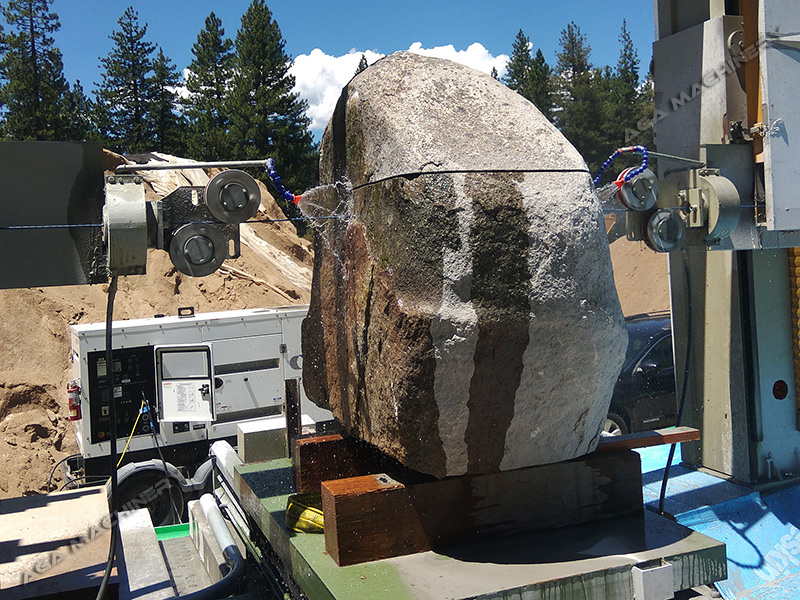

Applicable for sawing large size of stone block into slabs.

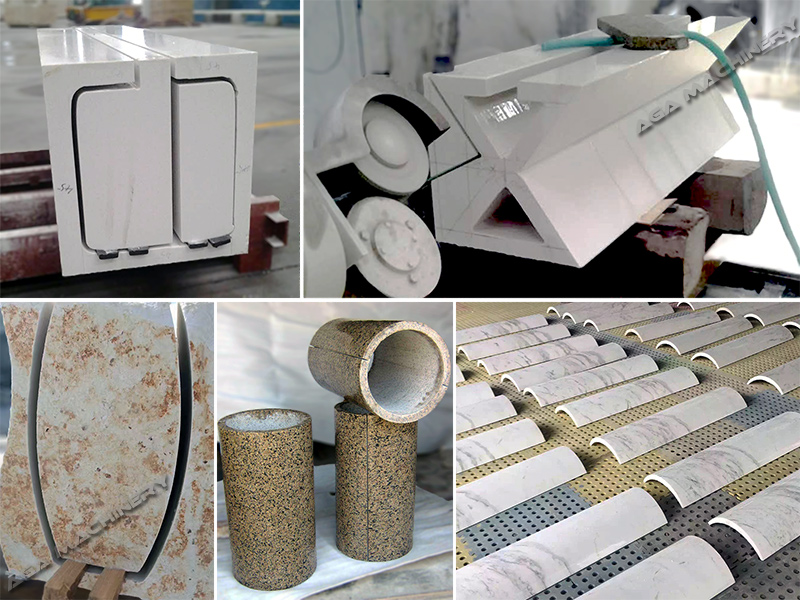

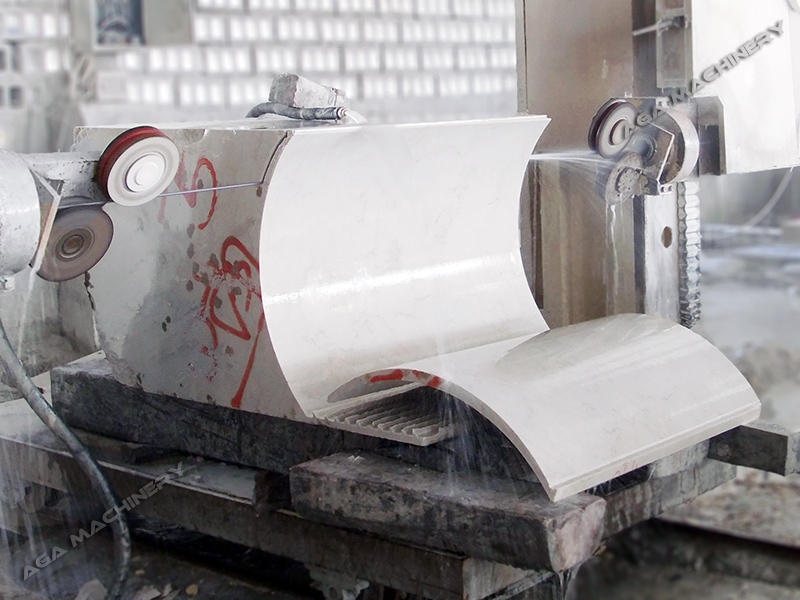

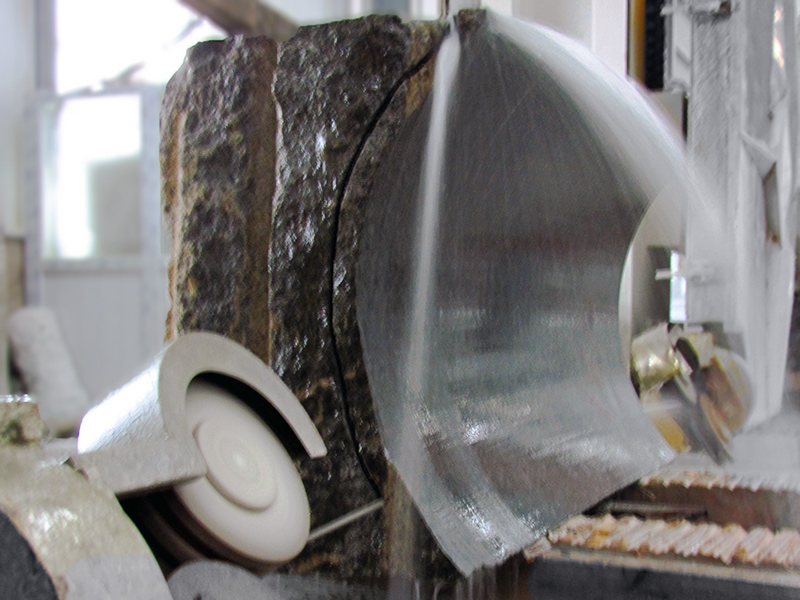

Advanced technology with CNC control system automatic work by program, able to make straight cut, arc cut and diversified cuts.

Accept input of CAD file and program automatically.

Robust machine made of very strong Cast Iron for stability and long lifetime.

Strong power motor for heavy duty work with efficiency.

Variable wire speed suitable for marble, granite, limestone, sandstone, etc.

Hydraulic unit provides automatic tension on the wire ensuring stable cutting performance.

SPECIFICATION OF WIRE SAW WS2000

Max. Cut Length   3 m   118"

Max. Cut Width   2 m   79"

Max. Cut Height   1.5 m   59"

Wire Diameter   Φ8 - Φ10 mm

Wire Length   16.6 m   54.5'

Linear Cut speed   25 - 45 m/s Variable

Spindle Motor   11 Kw  15HP

Total Power   22 Kw  30HP

Water Consumption   3 m3/h

Overall Size (L/W/H)   6×7×4 m   20'×23'×13'

Weight  7,000 Kg  15,400 lbs
