Wire Saw Machine

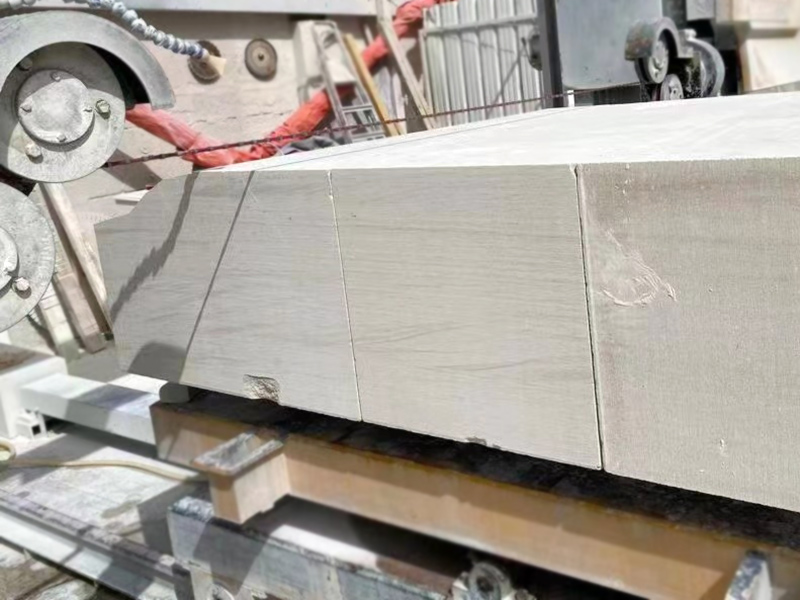

Wire saw machine for cutting marble granite limestone sandstone

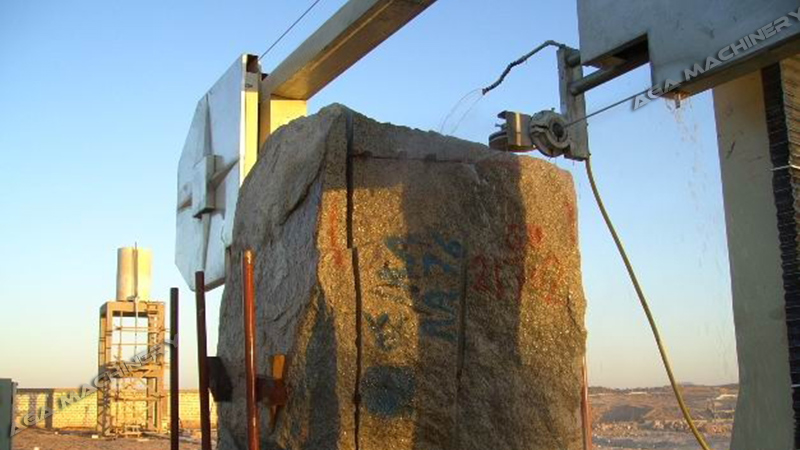

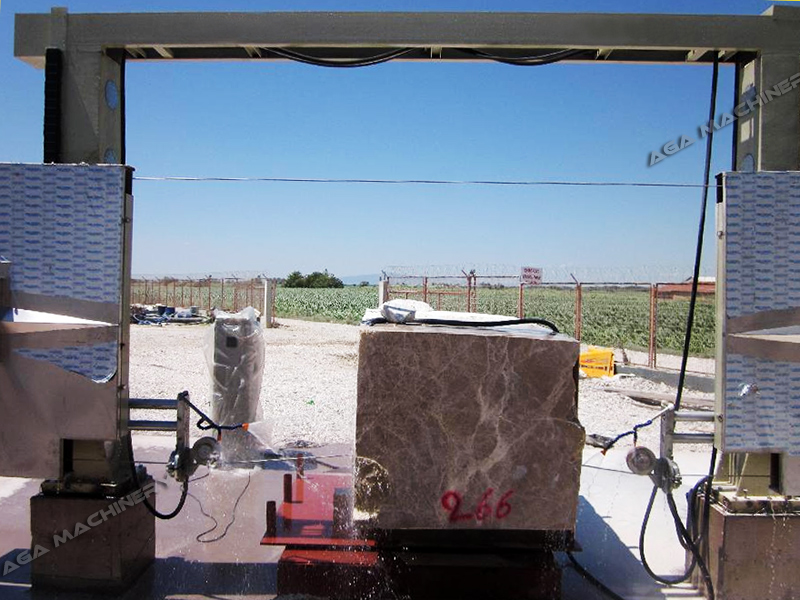

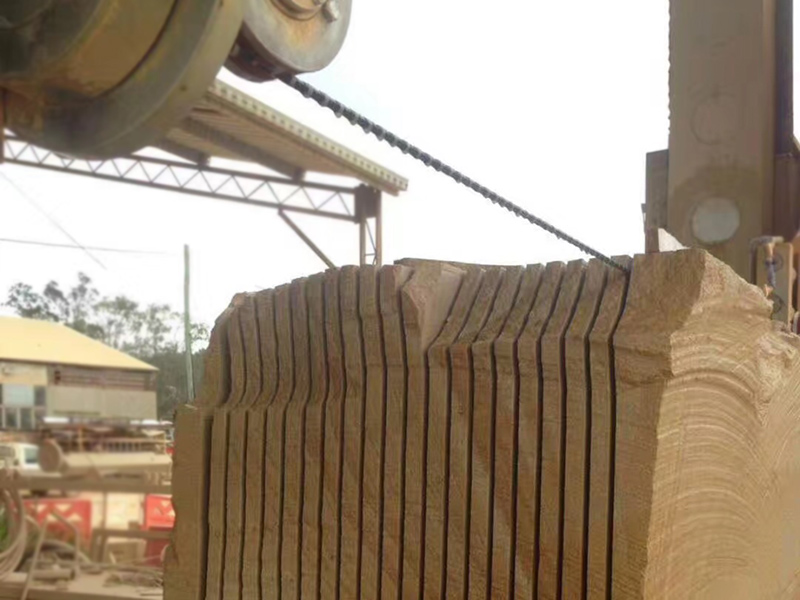

A giant wire saw machine making straight cuts on granite marble limestone sandstone etc.

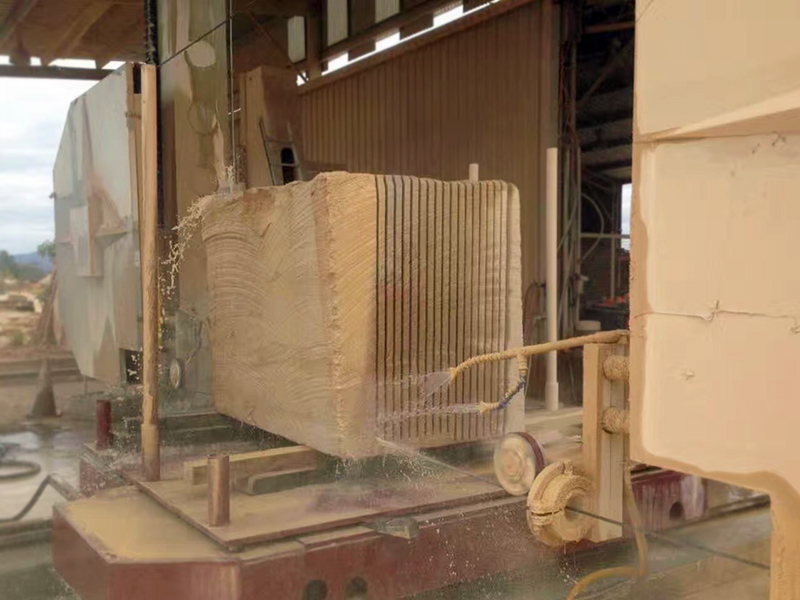

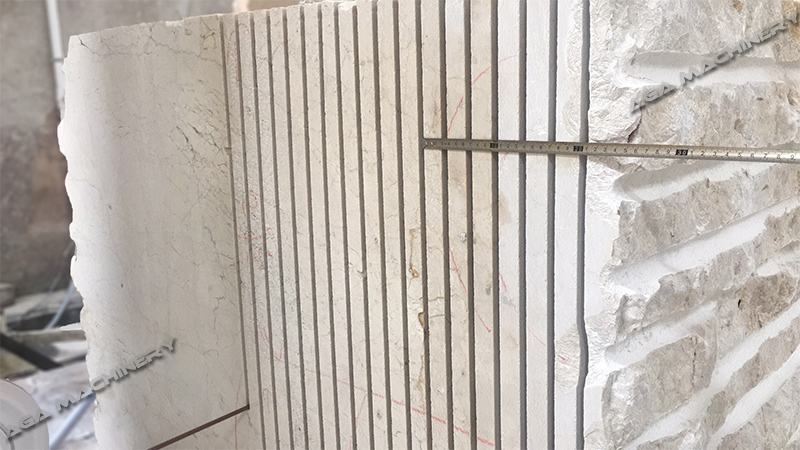

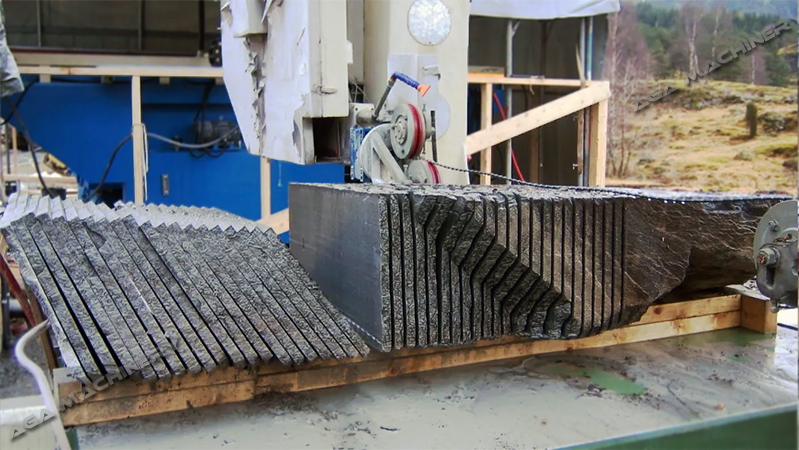

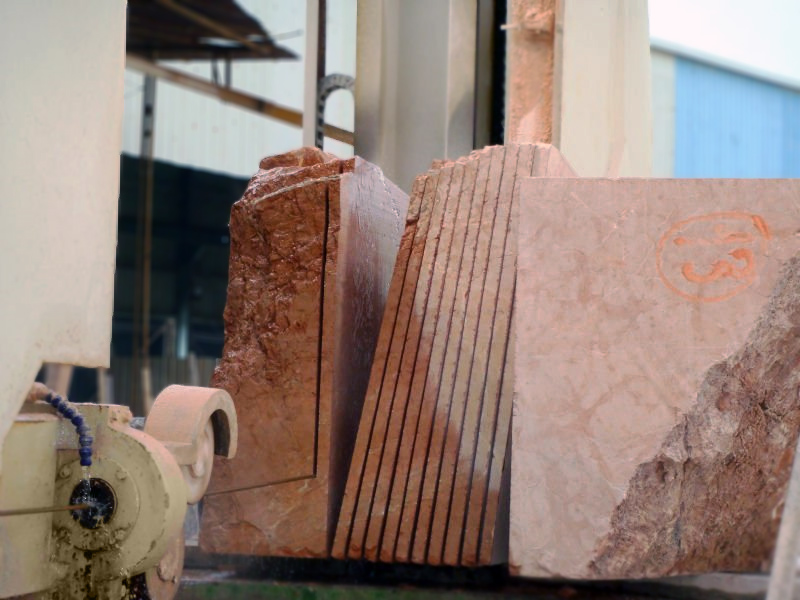

Applicable for sawing large stone block into slabs as well as block squaring and trimming.
Automatic cuts by program and flexible control with PLC system very easy to operate.
Machine structure made of very strong Cast Iron ensuring stability and long lifetime.
Strong power motor with Variable speed suitable for heavy duty work on marble, granite, limestone, sandstone, etc.

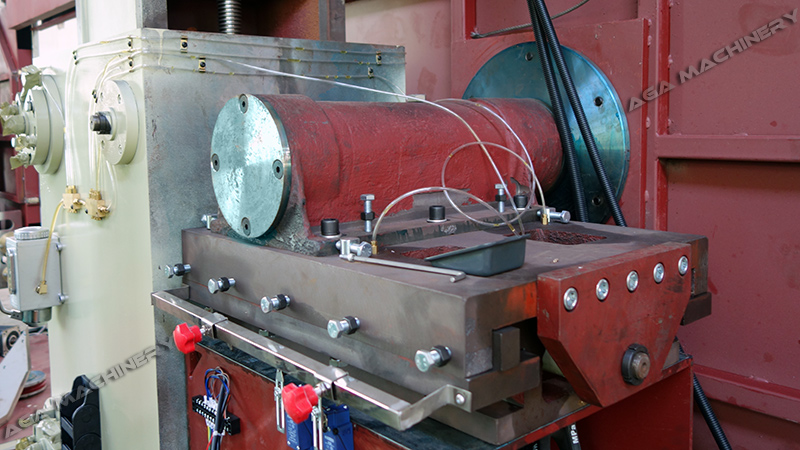

Hydraulic unit provides automatic tension on the wire ensuring stable running performance.
Custom made available for work table with turning 360° for shaping blocks.

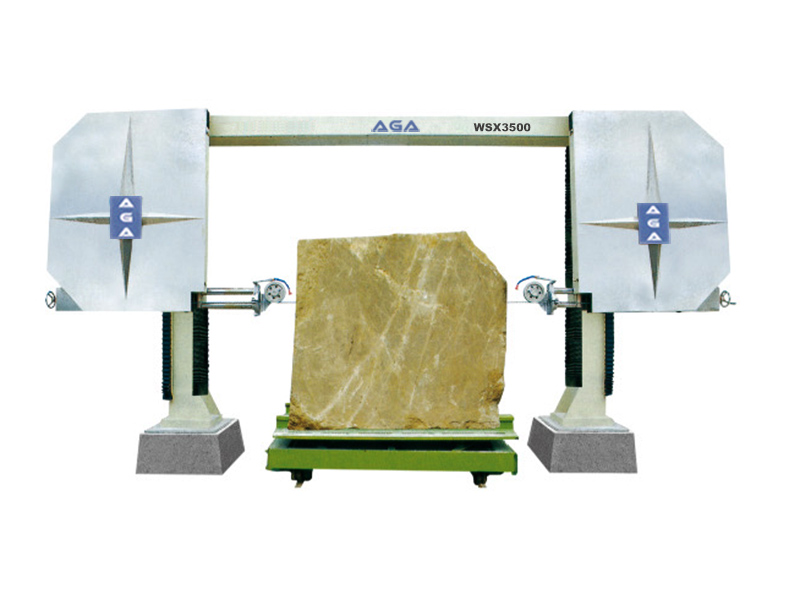

SPECIFICATION WIRE SAW WSS3500
Max. cut length 3.5 m 138"
Max. cut width 3.5 m 138"
Max. cut height 2 m 79"
Wire diameter Φ8 - Φ10 mm
Wire length 19 m 62.3'
Linear cut speed 0 – 40 m/s Variable
Spindle motor 15 Kw 20HP
Total power 27 Kw 37HP
Water consumption 3 m3/h
Overall size (L/W/H) 7 × 9 ×4.7 m 23'×29.5'×15.4'
Weight 7,500 Kg 16,500 lbs
