Flat Edge Polisher Back Splash Machine
Flat Edge Polisher Back Splash Machine Flat Edge Polisher Back Splash Machine Flat Edge Polisher Back Splash Machine Flat Edge Polisher Back Splash Machine Flat Edge Polisher Back Splash Machine

Flat Edge Polisher Back Splash Machine

Back splash machine to polish granite marble edge
Product ID : MB9000
Product Attributes :

Polish machine for flat edge back splash on granite marble quartz

Product Description

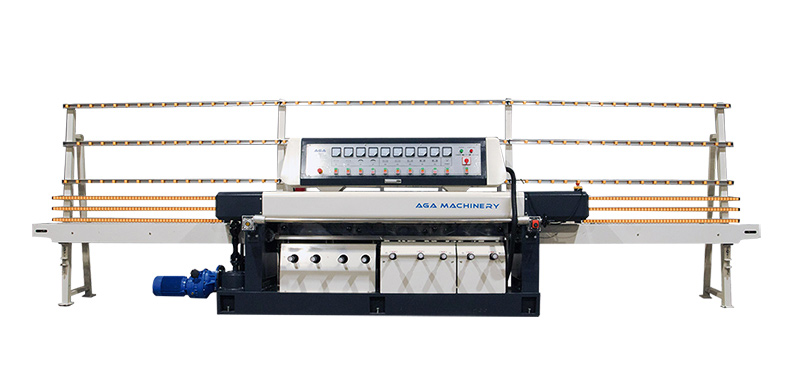

Edge polisher granite backsplash machine



VIDEO

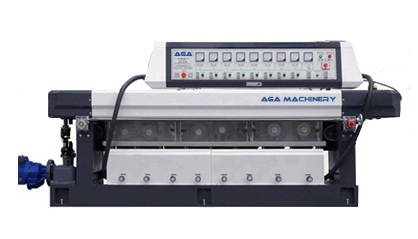

The machine with multi heads for polishing granite and marble on the back splash counter tops, sills, etc.

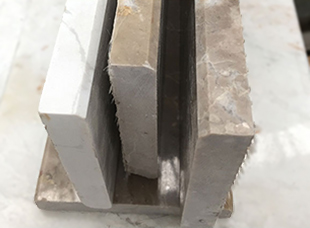

Able to do both the flat polish and bevel polish on the stone edges.

Inlet and outlet with rollers and clamps for long pieces.

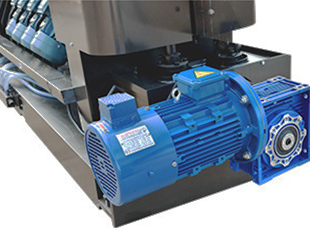

Variable speed drive motor with speed control for belt.

Cast iron bridge structure for stable performance and long life.

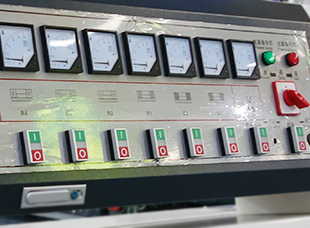

Automatic running and very easy to operate.



SPECIFICATION

Polish head 9 Total

Work thick 10 - 60 mm   2.36" Max

Work length 100 - 3000 mm   10' Max

Production rate 155 inch/min

Pad size Φ127 mm   Φ5"

Belt speed 0.7 – 5 m/min   27 – 197 inch/min

Min. stone size 100 × 100 mm   4" × 4"

Total power 20.5 Kw   28 HP

Water consumption 110 L/min   30 gal/min

Overall size 9.2 ×1.5 × 3m  30' x 5' x 10' (L/W/H)

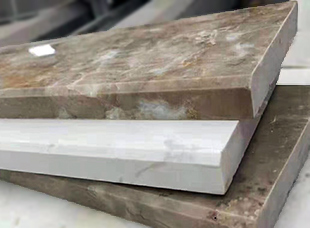

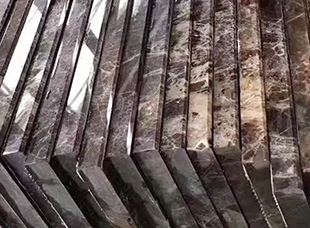

Backsplash machine edge polisher Edge polish machine for granite

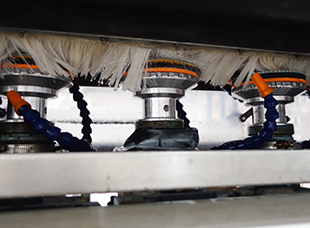

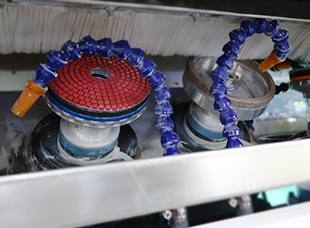

Granite polishing bevel edge Granite edge machine with multiheads

Stone edge polisher multiheads Marble edge polisher machine

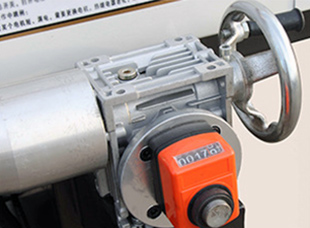

Granite edge polishing machine automatic Backsplash polish machine automatic
