Bridge Saw Machine CNC 5 Axis

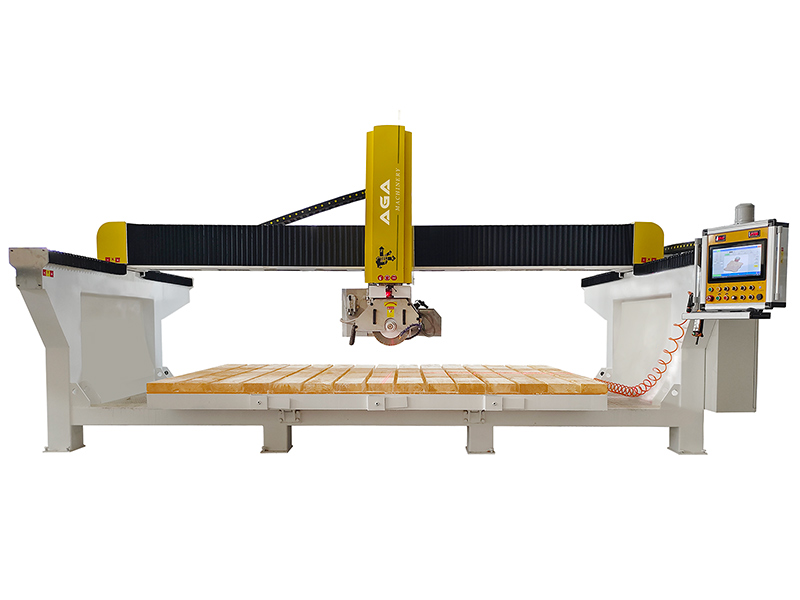

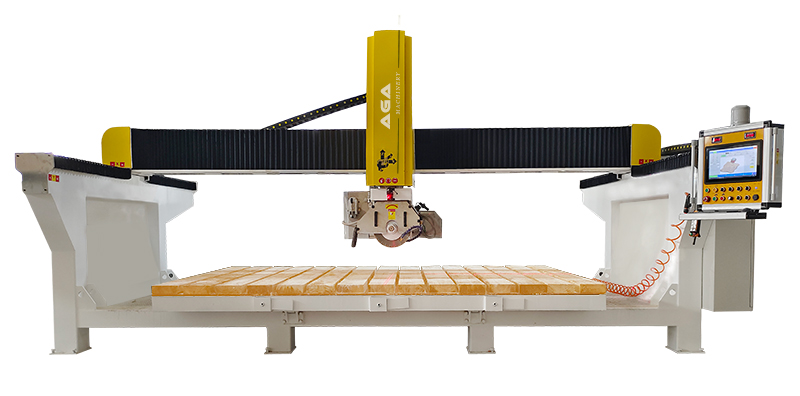

Magnus CNC bridge saw machine 5-axis for cutting and fabrications of granite, marble, quartz, ceramic and natural stones.

It is with a powerful blade motor 20 HP for cutting and Plus a drilling motor 10 HP for drilling, milling and engraving, especially efficient in cutting granite counter tops, slabs, vanity, steps, floors, etc.

ADVANTAGES

-  5-axis CNC (Computer Numerical Control) bridge saw PLUS a drilling head

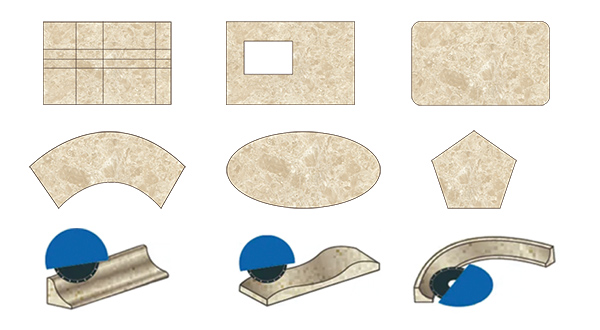

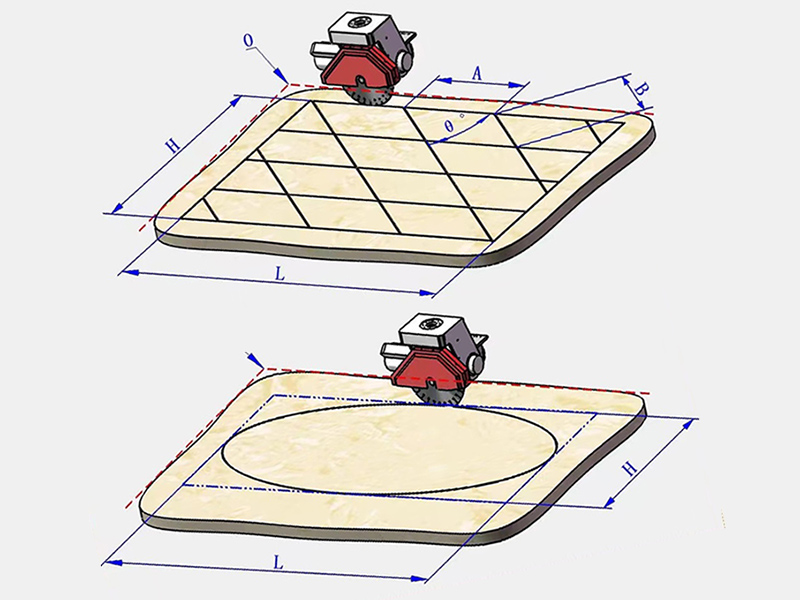

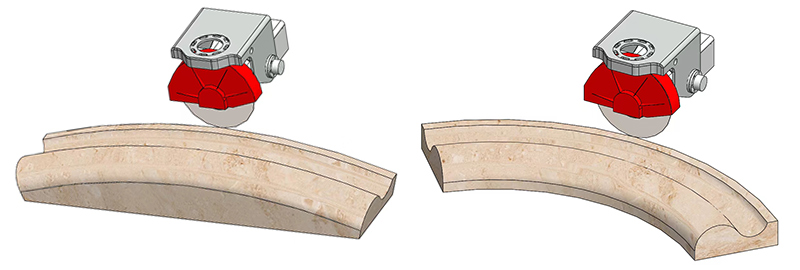

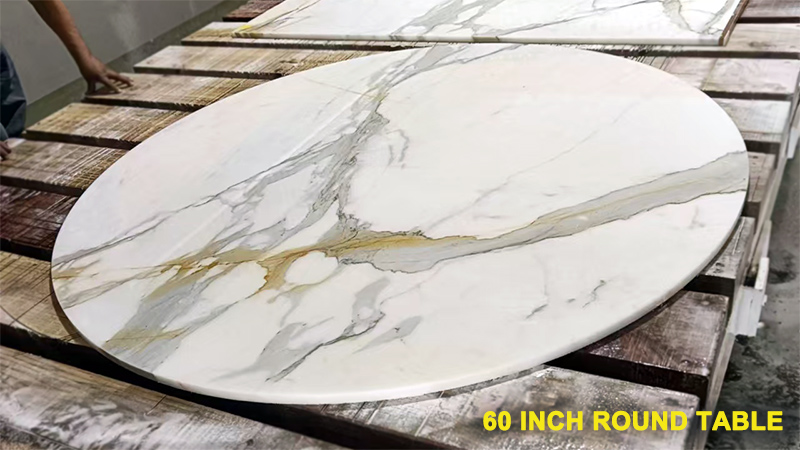

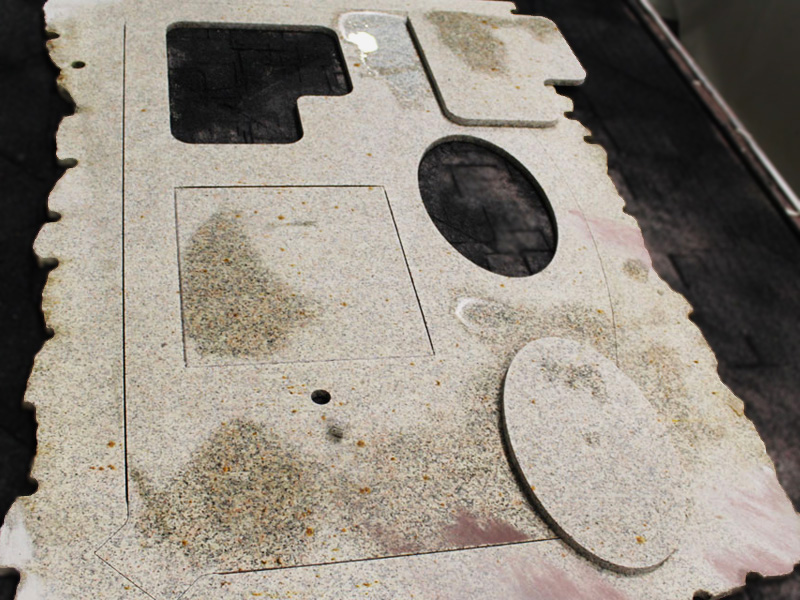

-  Able to do straight cut, miter cut, oval cut, curved cut, round cut, random angle cut, profiling, drilling, milling, engraving, etc.

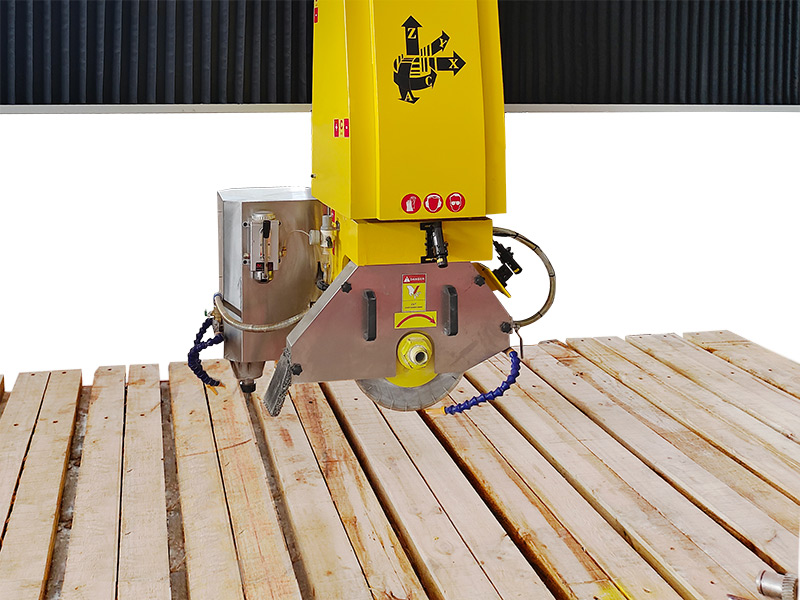

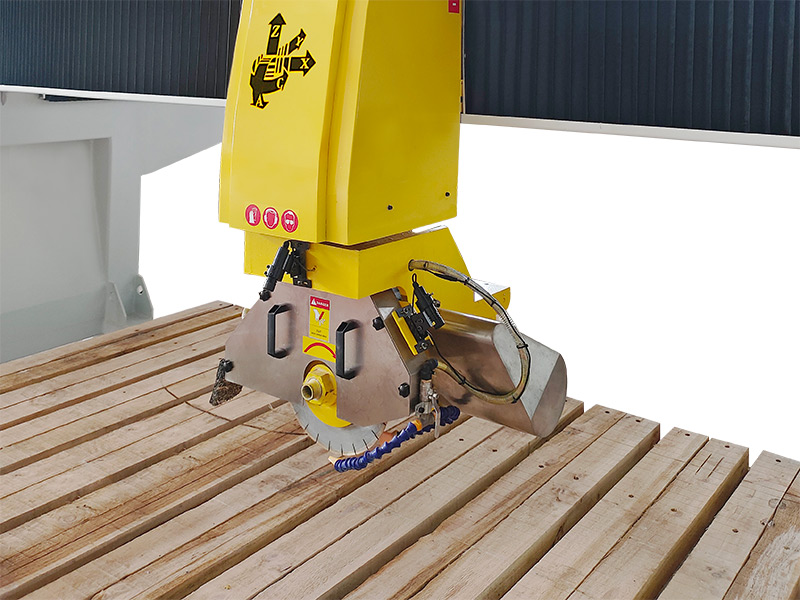

-  Automatic 0° - 360° head rotation and 0° - 90° tilt.

-  Hydraulic tilt table 0° - 85° for easy and safe load of big granite slab.

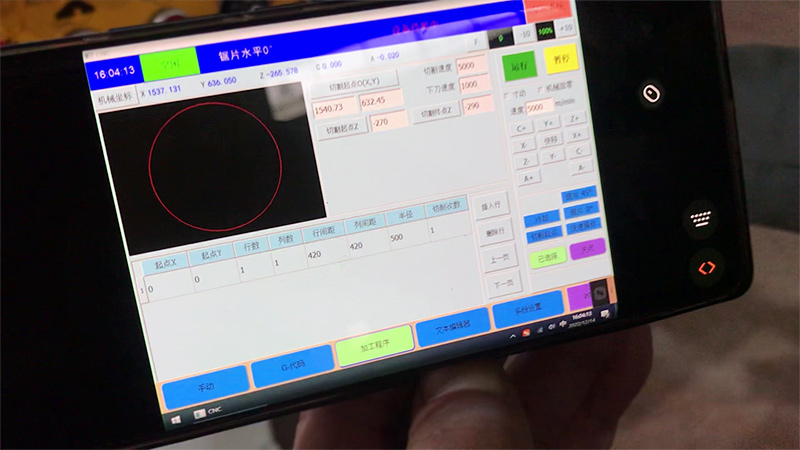

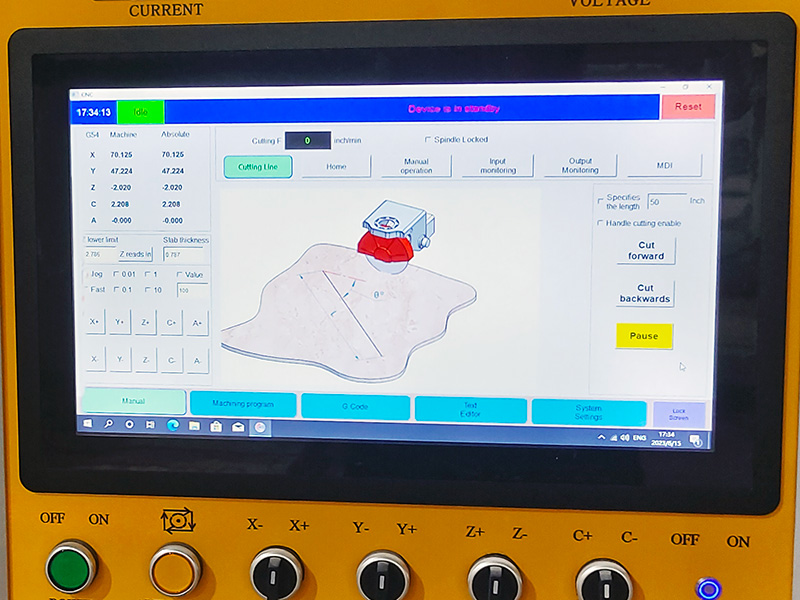

-  Touch Screen 15” with Wireless Remote Control capable of manual and automatic operations.

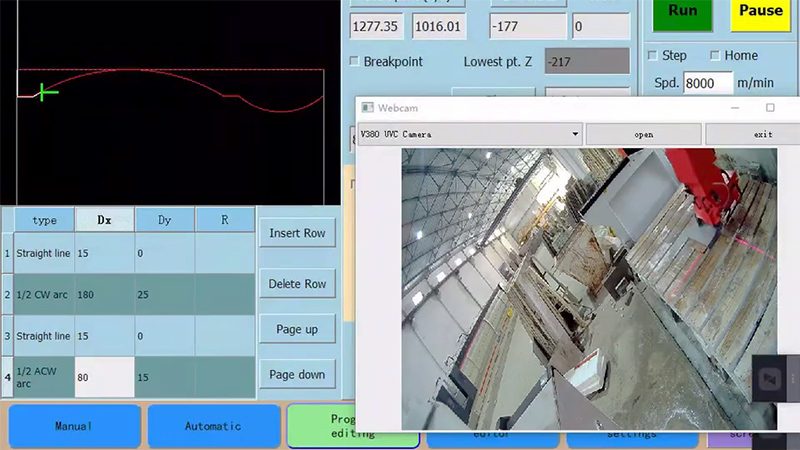

-  CNC software (CAD CAM) for manual programming and import DXF file CAD automatic.

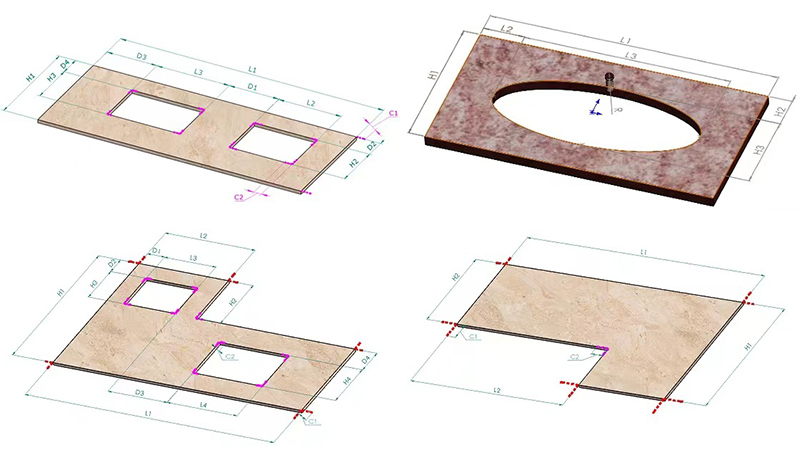

-  Built in menu with most Usual Designs for direct call and quick programming cut like Oval, Round, Polygon, Sector, etc.

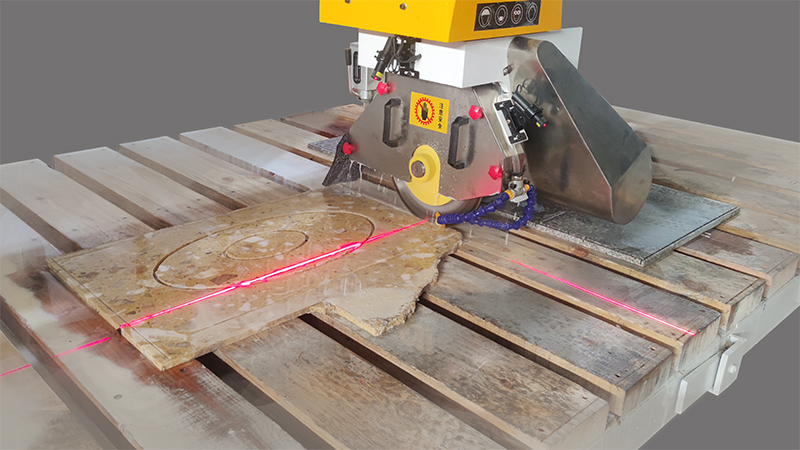

-  Green laser pointer mounted on blade cover for easy guide of cutting position.

-  Saw machine with premium parts like ball screw, linear guide, helical gear, planetary reducer, servo motor system, etc. ensuring high precision, flexibility and reliability.

-  Main structures are made of very strong cast iron for stability, durability and low resonance.

-  Monoblock structure small footprint easy install Plug and Play.

-  Operating Language in English & Spanish and Input Size unit in Inch & mm.

Magnus 5 bridge saw machine comes with a camera for remote support and monitoring of machine working.

Magnus 5 CNC bridge saw provides remote control and diagnosis with Wi-Fi that the technician can provide remote support and training on a Pad or smart phone.

SPECIFICATION

Control System 5-axis CNC

Blade Size  Ø350 - Ø450 mm  14" - 18"

Cut length  3500 mm  138"

Cut width  2100 mm  83"

X axis stroke  3700 mm 145" Servo Motor

Y axis stroke  2300 mm 90" Servo Motor

Z axis stroke  500 mm 20" Servo Motor

C axis stroke  0 - 360° Servo Motor

A axis stroke  0 - 90° Servo Motor

Table size  3500×2100mm  138"×83"

Blade Motor  15 Kw  20HP  0-3000RPM

Drilling/Milling motor   7.5Kw  10HP 0-18000RPM

Total Power  32.4Kw  44HP

Overall Size (L/W/H)  5.8 × 3.2 × 2.8 m   20' × 16' × 9.2'

Total Weight  5000 Kg   11,000 lbs
